Bluetooth® Tally System

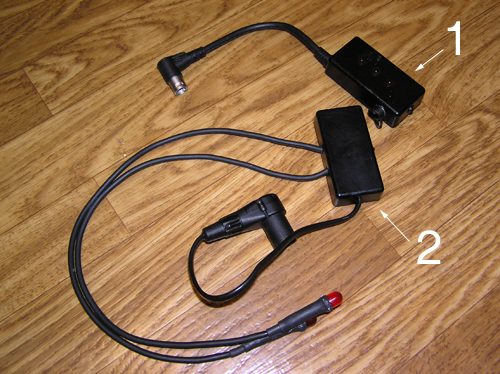

Fig 1.

The system consists of two units. A sender and a receiver. The "sender" (1) receives the
tally signal from the camera via the original sony viewfinder cable. It then goes thru a
relay that switches on and off the small red diodes and also
transmit the signal with the bluetooth protocol to the receptor (2).
